PRODUCTS  page 1 of 4      Office   818 957 7477     Cell  310 880 0155     Tel/ Fax 818 957 7477

Double Click on  for larger image or go to PRODUCT SLIDE SHOW

Part Description

For more technical data refer to TECHNICAL NOTES



Sale Price

Weight lbs
  NEWS FLASH New BDA/BDD/BDM "BIG VALVE" and BDG/BDX Cylinder Head all 3 Bolt exhaust, Stainless Steel seats, 5 Axis CNC machined port's and tract's. Cosworth four bolt also available.  See TECHNICAL NOTES for extensive details and head specification. Cylinder head available to engine builders in three stages of completion.  Stage 1, 2, 3.  For stage details and pricing scroll down page   see below

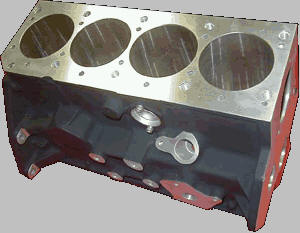

  Alloy Cylinder Block (1600cc) linered up to 2000cc, 81mm to 90.4mm. Weight 43 lbs, 36 lbs lighter than cast iron block. Supplied complete with align bored billet end caps and custom studs, washers and nuts. Block also includes freeze plugs and allen bolt retainers and plugs.  Specify type of water pump desired  (BDT or BDG) to determine size of hole cut into block. Block is cast for both types of pump. If you change your mind on the water pump a small thin plate will allow you to adapt block. Studs 12mm (recommended) , 7/16 or combination thread cylinder head studs available.   $4,275 43
    BDT 1800cc Alloy Block with chrome bores 86 to 88mm bores available, 86mm Nicasil bore with oil squirt jets and 2 or 4 bolt main caps   $6,349



 44
STAGE 1- Finished casting pressure tested and machined as follows: Spring seats, valve guides and valve seats machined but not inserted, throat bore and port bore CNC machined on inlet and exhaust, combustion chamber CNC machined to 28cc. All gasket faces machined and threaded for studs.   $3939 21
  STAGE 2- As specified above but "Colisbro" bronze valve guides are 2/3rds installed ( to allow builder to custom alter the valve pocket and tract ),  9/32 guide size standard with 6mm available, stainless steel valve seats installed and cut to single angle of 45 degrees.   $4444 23
  STAGE 3- Components as above but cylinder head  now has valve guides fully inserted with valve seats cut to three angle on IN and EX seats. Head though Five axis CNC machined will have final hand finishing and fettling. Berylium seats are a special order.   $4949 23
    COSWORTH BDD 4 Bolt exhaust cylinder heads, 5 axis CNC Machined. Casting supplied directly by Cosworth Racing. Fully finished with 9/32 or 6mm Colisbro guides and stainless steel valve seats, Berylium seats added cost. Picture illustrates the raw casting before machining as it will be machined to customers specification.   $4999 24
   Replacement 81mm up to 90.4 mm liners to suit BDD/BDM/BDG/BDT block. High quality spun cast in Portugal (set of four). Many liner sizes available   $313 8
  BDD/BDG Cam Tray (LM25) Alloy. Two cam trays available: 1) BDD with 1.20 Cam Follower. 2) BDG with 1.25 Cam Follower on Inlet side with 1.2 on exhaust.   $1375 10
  NEW BDT Heavy Duty Cam tray (LM25) Alloy. Designed for Turbo application where larger camshaft bearing surfaces and stiffer cam box are required. New pictures to follow   $1575 10
  Selection of various Cam Followers and valve spring components

   BDD 1.20 ins Lightweight Cam Followers (set of 16 ) Nitrided EN40B steel  with Dick.       $490 2
   BDG 1.25 ins Lightweight Cam Followers (set of 16 ) Nitrided EN40B steel with Dick.   $585 2
   BDG 1.25 ins Lightweight Cam Followers ( set of 16) Nitrided EN40B steel with out Dick.   $452 2
   Cam tray Bungs with O rings, (set of two) $34 0.2
  BDG  Intake valve 1.402 x 4.56 x 9/32 stem ,  Modified Tulip, Stainless Steel EV8 (21-4N) Austenitic, heat treated, Black Nitrided, completely CNC machined, swirl polished, friction welded hard tip.  45deg  face, 25 back-cut, under cut to 6.5mm.  Alternative Martensitic material available for thinner necking of valve. lower cost for full sets $29 0.125
  BDG  Exhaust valve 1.202 x 3.945 x 9/32 stem ,  Tulip profile, Stainless Steel EV8 (21-4N), heat treated, Black Nitrided, completely CNC machined, swirl polished, friction welded hard tip.  45deg  face, 30 back-cut.  Inconel (similar to Nimonic) available when used in high temp engines, Nitro, Turbo, Super charger etc. lower cost for full sets $27 0.125
  BDD  Intake valve 1.275 x 4.56 x 6mm stem,  Modified Tulip, Stainless Steel EV8 (21-4N) Austenitic, heat treated, Black Nitrided, completely CNC machined, swirl polished, friction welded hard tip. , 45deg  face, 25 deg back-cut, under cut to 6.5mm.  Alternative Martensitic material available for thinner necking of valve. lower cost for full sets $31 0.125
  BDD   Exhaust valve 1.0825 x 3.945 x 6mm stem, Tulip profile, Stainless Steel EV8 (21-4N), heat treated, Black Nitrided, completely CNC machined, swirl polished, friction welded hard tip. , 45deg  face, 30 back-cut.  Inconel (similar to Nimonic) available when used in high temp engines, Nitro, Turbo, Super charger etc. lower cost for full sets $29 0.125
  Cosworth Smithhelm racing double spring, 1.44 free length, 1.25 outer diameter, 066 ID, 1.25 fitted length 75 lbs, 270 lbs at .450 lift, nitrided.   enquire
  Designed for use in IRL up to 10,000 rpm and occasionally above: Very high quality spring suitable for use in BD engines, call to enquire enquire
  TWM Fuel injection throttle bodies, are direct replacement for  Weber DCOE and DCO SP carburetor 40,42,45,48,50, 55,diameters available. Throttle bodies will require a fuel rail specified depending on the spacing of cylinders 2 &3 on a 4 cylinder engine. Where center to center distance between the barrels of cylinders 2 and 3 is less than 97mm use left hand unit 2910 series available in 40,42,aand 45, sizes. Minimum distance 83mm. See fuel rail spec below. $310
  Fuel rail required for fuel injection throttle bodies illustrated above. Be sure to measure cylinders 2 and 3 to determine right size of fuel rail center O ring tube. $155

PRODUCTS PAGE INDEX  (use pointer to jump to page)

Page 1: Blocks - Heads - Cam Tray - Followers - Valves - Springs - Throttle Bodies

Page 2: Pulleys - Belts - Idlers

Page 3: Jackshafts - Camshafts - Flywheel - Spring Retainers - Stem seals - Gaskets

Page 4: Studs/Bolts - Manifolds - Cam Covers - Oil Pumps - Water Pumps - Hardware
